MPIII SYSTEM COMPONENTS

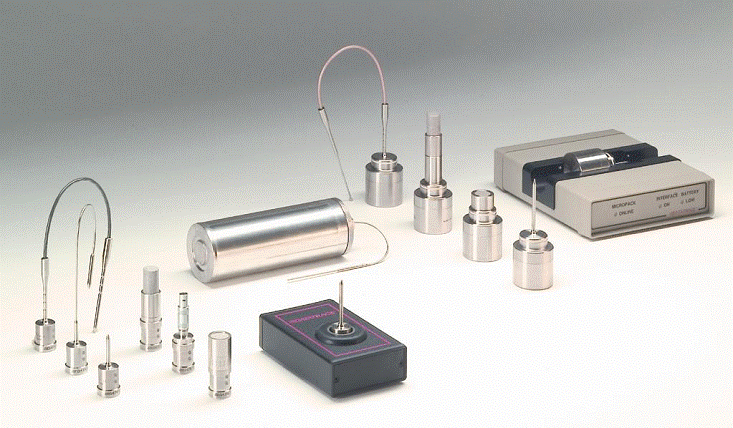

DataTrace® MPIII SYSTEM COMPONENTS
ITEM |
MODEL# |
DESCRIPTION |
|
MPIII PC Interface System |
6700 |
MPIII Interface System includes PC I/F Module, Serial Cable,and DataTrace® for Windows Software. |
|
MPIII Rigid Tracer |
7500 |
-20°C to +140°C (Standard Rigid Taper Tip Probe Sizes only;Thermistor or RTD.) |
|
|
T=Taper Tip (0.125" dia.) |
Probe Tip Length |
Overall Length |
|
T1 |
1.0" (25mm) |
1.8" (46mm) |
|
T1.5 |
1.5" (38mm) |
2.3" (58mm) |
|
T2 |
2.0" (51mm) |
2.8" (71mm) |
|
T3 |
3.0" (76mm) |
3.8" (97mm) |
|
T4 |
4.0" (102mm) |
4.8" (122mm) |
|
T5 |
5.0" (127mm) |
5.8" (147mm) |
MPIII Flex Tracer |
7500SFTxx |
-20°C to +140°C (Silicone flexible cable with Taper Tip;Thermistor or RTD.) |
|
|
7500SSFTxx |
-20°C to +140°C (Stainless steel flexible cable with Taper Tip;Thermistor or RTD.) |
|
|
7500SFNxx |
-20°C to +140°C (Silicone flexible cable with Needle Tip;Thermistor only.) |
|
|
7500SSFNxx |
-20°C to +140°C (Stainless steel flexible cable with Needle Tip;Thermistor only.) |
|
|
xx - Select Standard cable lengths which are 06 = 6 inches and 12 = 12 inches. |
||
MPIII HiTemp Tracer |
7500HSSFTxx |
+100°C to +360°C (Stainless steel flexible cable with Taper Tip;Thermistor only.) |
|
|
7500HSSFNxx |
+100°C to +360°C (Stainless steel flexible cable with Needle Tip;Thermistor only.) |
|
|
7500HXSSFTxx |
-20°C to +400°C (Stainless steel flexible cable with Taper Tip;RTD only.) |
|
|
(Consult factory for flex cable lengths available for MPIII HiTemp Tracers.) |
||
MPIII HiTemp Tracers may require a Thermal Pack for protection of the electronic components above 140°C. (See DataTrace MPIII Accessories) Please contact factory for HiTemp process questionnaire. |
|||
MPIII HUMIDITY Tracer |
7300 |
+10°C to +85°C; 0% to 100% |
|
MPIII PRESSURE Tracer |
7150 |
+10°C to +140°C; 0 to 150 psia |
|
MPIII 4-20mA Tracer |
7420 |
4 - 20 mA |
|
Tracer lengths or configurations not indicated on this price list are Special Orders and require a minimum order quantity of 10 units at a minimum price of $1,895/Tracer. |
DataTrace® MPIII ACCESSORIES
ITEM |
MODEL# |
DESCRIPTION |
|
MPIII Thermal Pack |
3000-MPIII |
Stainless Steel Container & TEFLON® Thermal Barrier 3"D x 6"L (75mm x 120mm) |
|
|
3140-MPIII |
Stainless Steel Dewar & TEFLON® Thermal Barrier 2"D x 6"L (50mm x 140mm) |
|
|
3200-MPIII |
Stainless Steel Dewar & TEFLON® Thermal Barrier 2"D x 8"L (50mm x 200mm) |
|
|
3400-MPIII |
Stainless Steel Dewar & TEFLON® Thermal Barrier 2"D x 16"L (50mm x 400mm) |
|
|
3175-MPIII |
Stainless Steel Dewar & TEFLON® Thermal Barrier 1.18"D x 7"L (30mm x 175mm) |
|
|
3080-MPIII |
Aluminum (clear anodized) case with TEFLON and aero-gel Thermal Barrier holds up to 3 MPIII Tracers 3.7" x 3.2" x 1.8" (95mm x 82mm x 46mm) |
|
MPIII Batteries (pkg of 20) |
MPIII20 |
Batteries for MPIII Tracers, package of 20. |
|
MPIII Maintenance Kit |
MPIIIM50 |
O-rings, silicone grease, and accessories required to change the battery in the MPIII Tracer. |
|
MPIII RH Sensors (pkg of 4) |
MPIIIRH4 |
RH replacement sensors for MPIII Humidity Tracer, package of 4. |
|
Internal Retainer (pkg of 6) |
IR6-MPIII IR6-MPIII-ECK |
Positions the Tracer's probe tip at the "cold point" completely inside the container for penetration studies, package of 6. |
|
MPIII Internal Retainer with Standoff |
IR-MPIII-SO |
Positions the Tracer's probe tip at the "cold point" completely inside the container for penetration studies with 4 standoff lengths to accommodate different container sizes. |
|
IR Clip for Standoffs |
IRCLIP |
IR clip to hold MPIII Tracer in position. |
|
Individual Standoffs |
IR0 |
MPIII IR standoff |
|
|
IR1 |
MPIII IR standoff |
|
|
IR2 |
MPIII IR standoff |
|
|
IR3 |
MPIII IR standoff |
|
|
C-17 |
MPIII IR standoff - Gasket. |
|
Adhesive Disks (lots of 240) |
MPIIIAD240 |
Adhesive used to position a Tracer inside a container or on another object during temperature profiling; 10 sheets of 24 disks/sheet. |
|
MPIII Storage Tubes |
|
Stores one (1) MPIII Tracer.(Storage container included with purchase of new Tracer at no additional cost.) |
|
MPIII Pressure Connector |
|
The factory has several connectors for the MPIII Pressure Tracer with various Swagelok tube fittings. Contact the factory for price and availability. |
DataTrace®
GENERAL ACCESSORIES (Used with both MPIII and FRB Systems)
ITEM |
MODEL# |
DESCRIPTION |
USB Adaptor |
USBA |
Converts a USB port to a Serial connector, for use with any PC Interface System. |
RH Accessories |
RH-D |
Dustfilter to protect RH sensor. |
|
RH-CE |
Solid cap - extended to protect RH sensor during temperature calibration in a bath. |
Screw Coupling (pkg of 6) |
SCT6 Taper Tip SCE6 Bullet Tip |
Allows the DATATRACE® probe to penetrate container lids or side walls using ECKLUND C-5 fittings (not included). |
Ecklund Receptacle |
C-5 |
Stainless Steel, two-piece receptacle for metal containers. |
|
C-5D |
Delrin, two-piece receptacle for metal containers. |
|
C-5.1 |
Brass, two-piece receptacle for plastic pouches. |
|
C-5.1M |
Brass, two-piece receptacle for plastic pouches. |
|
C-5 Mod Nut |
Modified Hex Nut for C-5 |
|
C5.1OR |
O-ring for C-5.1 fitting. (pkg of 100) |
|
C-16 |
Gasket for C-5 receptacles (pkg of 100) |
|
C-26 |
Gasket for C-5.1 receptacles . (pkg of 100) |
Ecklund Accessories |
C-11 |
Combination can punch and countersink to create a hole for installation of receptacle. |
|
C-12 |
Lever-type can punch to create a hole for installation of a receptacle. |
|
C-15 |
Awl to make pilot hole for C-11 punch. |
|
C-14-S |
Spanner wrench with handle for use with the IR Standoff |
S-28RG |
Rubber grommets to provide additional sealing for the Screw Coupling. (pkg of 100) |
|
A/B Switch Box & Cables |
A/B Switch |
Serial switch box to allow connection of both a PC Interface Module and a MPIII PC Interface Module to the same computer serial port. |
IQ/OQ/PQ Guidelines |
IQ/OQ/PQ |
IQ/OQ/PQ Guideline Manual, including document CD and generic DataTrace SOP. |
Equipment Case |
LTC |
Large equipment case. |
